Unity Manual

We believe that the amount of Unity use-cases is endless. Here are some:

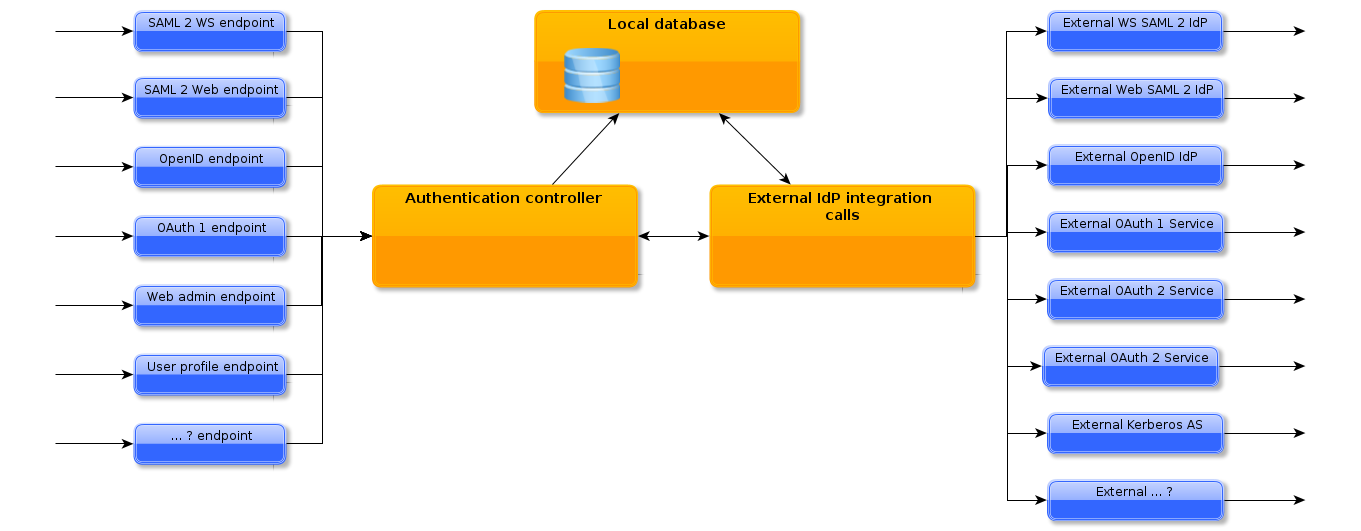

Internally Unity is composed of two parts:

Unity extensibility is the the core concept, and there are no exceptions to this rule. For instance each and every supported credential type is an extension, there are no hardcoded ones.

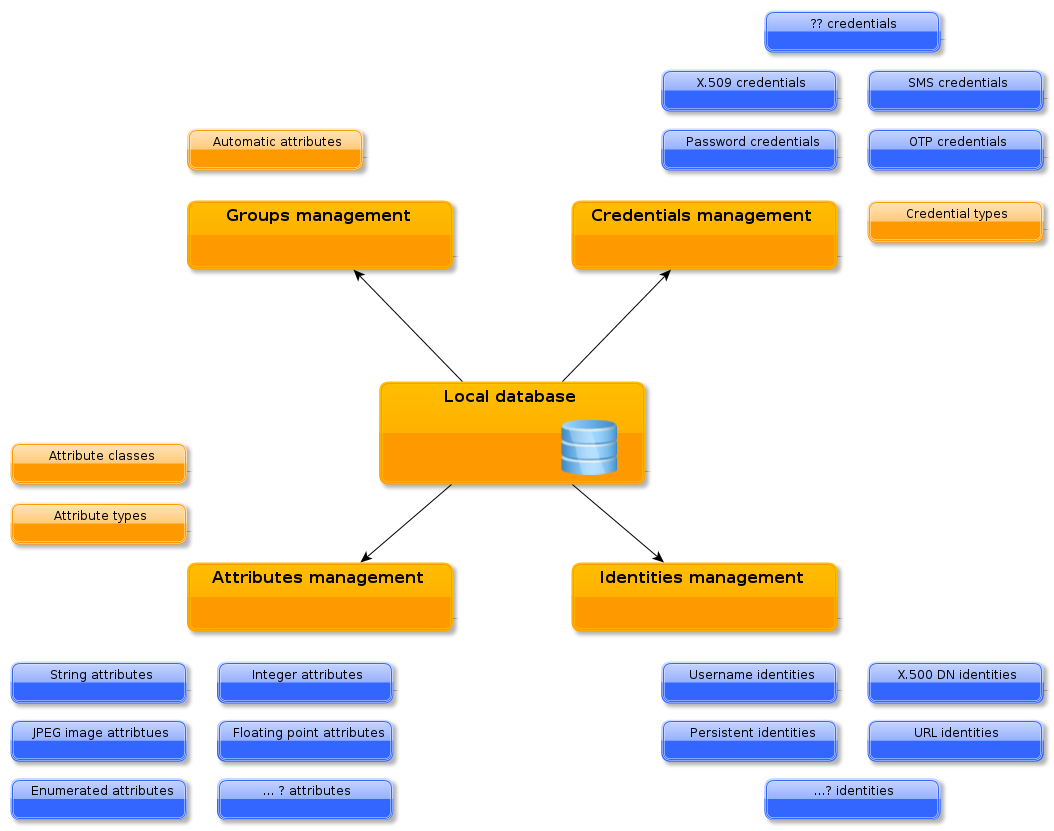

The core platform provides persistence of the service state (i.e. managed entities, attributes, groups, etc), extensions management, orchestration and several cross cutting features. Such core features are preferences management, notifications, registrations support etc.

Unity is written solely in Java 7, which is the single, hard installation requirement. All used technologies are as lightweight as possible. Unity works as set of services available via an embedded HTTP server (Jetty). Therefore there is no need to install it on top of an existing HTTP or servlet server, or even worse to setup a JEE container.

The most of the Unity functionality is controlled via its rich Web Admin interface. Some, rather low-level subsystems need to be set up in configuration files.

Below a glossary of key terms which are used throughout this manual is presented.

Unity is tested on the Linux platform. Also other variants of Unix should be fine to run Unity.

Unity theoretically can be run on Windows server, however we neither provide startup scripts for windows nor test it. If you would love to run Unity on Windows machine, write to the support mailing list.

Unity is distributed with everything needed to install and run the system except of Java. Java Runtime Environment 7 must be installed, both OpenJDK and Oracle distributions are supported. It is strongly advised to use the latest, updated version of the JRE.

If the .tar.gz version is used, it must be simply downloaded and unpacked. A directory with Unity version number is included. Typically the start script should be created or integrated with the startup system of the machine. The distribution’s extra/ folder may provide a suitable script. It is also a good idea to add the INSTALLATION_DIRECTORY/bin/ folder to the PATH environment variable, so the scripts are instantly available. This is assumed later on in all examples.

If the .rpm version is used it should be installed with the package manager. The only dependency is Java JRE, which will be installed automatically if not yet available on the machine. The startup scripts are also installed automatically.

Unity can be started right away, but most probably the default setting should be changed. Please refer to the [quick_start] or General server configuration sections for a short or detailed information how to configure the system.

Starting is simple:

It is always good to check the log files. The log/unity-startup.log should contain only few lines saying that the server started successfully. If there are any errors there, it means that a very low level problem happened, for instance the JRE is not available. The log/unity-server.log should provide a more detailed information, which should be also checked. There should be no ERROR and no WARN entries.

Stopping the server is simple as well:

It is possible to install Unity in a High Availability (HA) setup. The Unity HA is realized on the database level, and currently it is only supported when using MySQL.

When configuring the system some precautions must be made:

Please note that several runtime features of the system are propagated to other nodes with some latency. For instance a removal of an endpoint on one instance will be reflected in the shared database immediately, however other Unity instances will catch up and undeploy the endpoint with some delay.

If the server is being managed with two instances simultaneously the Refresh buttons are more then handy: the UI state is not updated automatically.

Finally note about login sessions: login sessions are shared between Unity instances, while HTTP sessions are not. Therefore if the web browser is logged to one instance’s endpoint and then the browser is directed to another the session should be preserved (assuming that the browser has the same DNS address associated with both instances as it is suggested above). The same applies to the logout operation.

Unity server can be started right after installation. By default the server is configured to listen on the localhost (loopback) network interface and uses absolutely insecure credentials for the TLS protocol. Therefore you can play around but before going into any real usage some reconfiguration is mandatory.

Let’s start from crucial facts about Unity in general:

Here we list the most important facts about the default configuration:

Once again, to have a short list:

→ make note on what you want to do with Unity, concentrating on -→ what will be the clients, using what protocols -→ whether external authentication services are going to be used, which ones, and with what protocols? -→ → design internal DB schema (attribute types, groups structure, attribute classes)

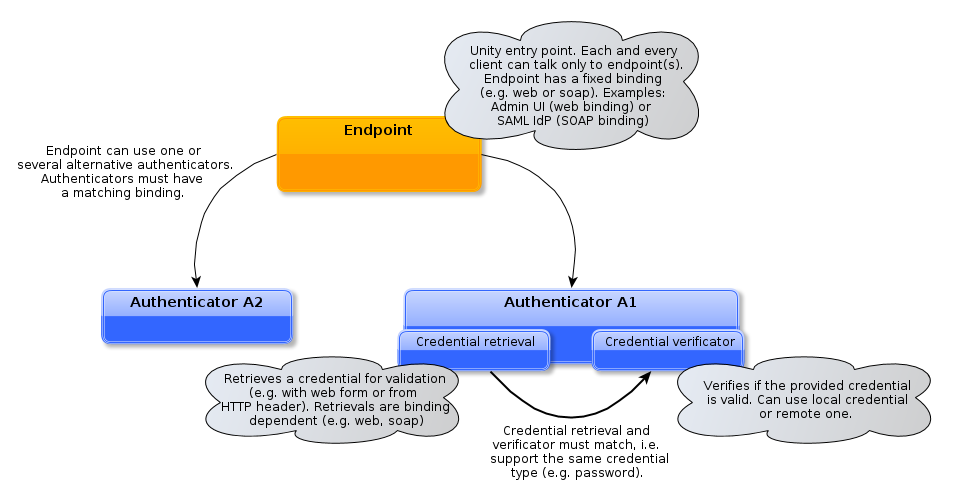

What are the most important elements of the system to configure? The following diagrams should introduce you to endpoints and authenticators:

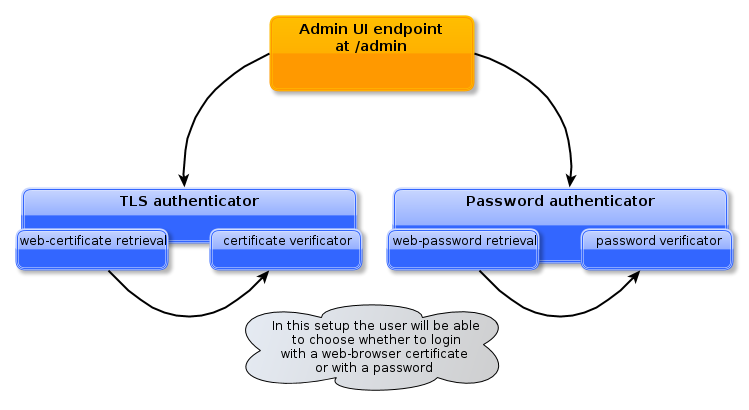

A concrete example of the above schema can be as follows:

Endpoints are the modules which are entry points to Unity. Each endpoint has its binding the low level access protocol which can be for instance web (designated for web-browsers) or SOAP (for web service clients). Example of endpoints are SAML IdP endpoint (allows relying services to authenticate their users with SAML) with the web binding or the Admin UI endpoint (again with the web binding) which provides an embedded administration UI.

Each endpoint’s authentication is configured by associating it with authenticator(s). It is possible to set more then one authenticator to provide alternative authentication possibilities. It is also possible to group authenticators together to require providing of several credentials simultaneously.

Authenticator is a pair of credential retrieval and verificator. The retrieval collects the credential in a binding specific way. The verificator checks if it is correct.

The credential verificators can be local or external. Local verificator check the credential against a credential stored in the local database. The only configuration of such verificator is the name of a local credential. On the other hand the external verificator uses an external service to check the credential. Examples are LDAP or remote SAML IdP. In this case a rather complicated configuration of verificator is required.

Let’s try to use a client-authenticated TLS authentication for the SAML SOAP endpoint. By default this endpoint is enabled (all snippets are from the unityServer.conf, the main configuration file):

It uses the (single) authenticator pwdWS:

So lets define a new one, called certWS:

The new authenticator uses a certificate verificator with cxf-certificate retrieval. Both are matching as both are working with certificate credentials, so it is fine to use them together. The local credential setting (used by verificator) was set to Certificate credential. Of course such credential must be defined - you can check it in the Schema→Credential types tab of the Admin UI. As the retrieval requires no configuration we used an empty configuration file. The actual names of the retrievals and verificators are listed in Authenticators.

Finally let’s use this authenticator:

To apply changes one can restart the server. However it is more convenient to go to the Server management tab of Admin UI. There are tabs which allow to reload authenticators and endpoints on the fly.

If you want to learn more about integration with external identity systems, the separate SAML HowTo is the best starting point.

It is also good to play with the Admin UI to get familiar with the features offered there.

Unity uses two databases. The primary one is used to store the complete state of the system. The second one, called as local database, is used to record a stream of events which happen in the system. The purpose of the separate databases is that the primary database can be replicated and/or shared between multiple instances of Unity server, while the local database should not be replicated/shared. Of course backups of both databases can and should be performed.

Note that the Admin UI provides a possibility to create a dump of the primary database and to restore the system from such dump.

The following table enumerates all options which are used to configure both databases. Only one option pertains to the local database, the rest is for the primary one. This is because the local database is always handled by the H2 database engine, so only the database storage location can be changed.

Unity uses a centralized management of all Public Key Infrastructure (PKI) settings in a file defined in the main configuration. By default the configuration file is called pki.properties.

In the file three types of objects can be defined: PKI credentials (i.e. pairs consisting of an X.509 certificate and an associated private key), truststores (sets of trusted CA certificates with many additional settings as CRLs) and individual certificates of external entities.

It is possible to define many objects of each type. For instance one can define two credentials: one for SSL server and another one for the SAML IdP endpoint to sign issued SAML assertions.

All of the artifacts are named and the names are used in other parts of the Unity configuration to refer to a configure instance. The main configuration reference is presented below. The subsequent sections cover in more details the configuration of truststores and credentials which can be configured in many different ways.

Authenticators and endpoints as of now can be configured only in the configuration file. Endpoints are covered in a separate section Consumer access: the endpoints.

Authenticator is a pair of two configured elements: credential verificator and credential retrieval. The credential retrieval collects a credential in a binding specific way, for instance it may gather it from a SOAP header (in case of the web service binding) or present a text field and allow a user to enter it (in case of the web binding). The verificator is not binding-specific and is only responsible for validation of a presented credential. For example the passowrd verificator can be used with any retrieval which is collecting a password from a client.

Authenticators are added to endpoints and manage endpoint’s authentication. The endpoint must have at least one authenticator associated (and can have more when alternative or multi-credential authentication scenarios are implemented).

Example configuration:

The name of the authenticator is an arbitrary, unique string. The type is the most important part: it defines the name of the credential verificator and retrieval, both names must be separated with the string with. The following table lists allowed credential verificators and retrievals. Any combination can be used, assuming the same credential is exchanged.

Examples of some of the allowed combinations:

But for instance the combination ldap with web-saml2 is illegal: ldap verificator uses different exchange (Password) then web-saml2. Note that this is logical: LDAP server can not be used to verify a SAML assertion obtained from some remote SAML IdP.

Both credential verificator and credential retrieval can require a separate configuration in external files, in the example only the credential retrieval has it configured. Finally all local verificators must be associated with the existing local credential (the secured password in the example).

Configuration of external verificators is covered in the section Integration of 3rd party Identity Providers. Configuration of retrievals and local verificators is either not needed or trivial. Currently only the web-password allows for it, offering two options:

Name is used in the web interface. The registration form parameter is used only for cases when the retrieval is used with a remote authenticator: then the given registration form is presented automatically to the users who properly authenticated against the upstream IdP but doesn’t have a local account.

The embedded HTTP server is using sensible default values of HTTP settings. There are only two properties which always needs to be properly set: hostname and port. However in some cases it may be necessary to fine tune also the advanced settings. The complete reference is included below:

Notifications and other messages are sent by Unity in several cases, for instance as an optional verification step during password reset or to notify an administrator about a new registration request.

Currently the only notification channel available is the e-mail channel. It can be disabled by removing or commenting the e-mail configuration property in the main configuration file. If enabled it is configured in a separate properties file. The default file provides a detailed information on the available options so should be easy to edit.

The actual contents of the messages being sent is governed by the message templates. Message templates are configured using Admin UI (Server management→Message templates). It is also possible to configure them with configuration file (by default msgTemplates.properties), but this is much more difficult and not suggested. Currently a template is a named pair of two pieces of text: subject (title) and message body. What’s more the template can contain several variables which must be formated as:

Variables are replaced dynamically with concrete values when a message is prepared to be sent. Naturally each subsystem sending messages provides different variables. Therefore each template must be associated with a concrete subsystem. This is performed in the template edit screen. The list of available variables for each subsystem is also provided there.

Unity uses authenticaiton realms to manage shared configuration of login sessions for endpoints. Each endpoint must be associated with exactly one authentication realm.

In authentication realm configuration session expiration and blocking of brute force attacks are defined. It is also possible to enable remember me feature, which is rather insecure as the user must not use it from public computers:

Association of an endpoint with authentication realm is given in the main endpoint’s configuration in unityServer.conf:

Please note that several properties of authentication realms are supported only on web endpoints, as for instance web service (SOAP) endpoints do not use sessions. Still it is important to understand that even for those endpoints the fact whether the endpoint is or is not in the same authentication realm as other endpoint can be significant. The most important case is with all targeted tokens and identities which are generated by Unity. Let’s consider an example.

Two SAML endpoints A (Web) and B (SOAP) are in the same authentication realm R1, while the third endpoint C (SOAP) is in realm R2. If a service provider asks a client to to authenticate it via A endpoint and receives a transient (targeted) identity, this identity will be also valid for the queries to the endpoint B as both are in the same realm, sharing the session context of the logged user. At the same time this transient identity won’t be available at endpoint C.

Unity uses the Log4j logging framework in version 1.2.x (note that the latest version 2.x is much different). What is more the log4j-extras package is included so additional logging features are enabled. Logging is configured in the conf/log4j.properties file.

By default, log files are written to the the logs/ directory.

The following example config file configures logging so that log files are rotated daily, and the old log files are compressed.

For more info on controlling the logging we refer to the log4j documentation:

Log4j supports a very wide range of logging options, such as date based or size based file rollover, logging different things to different files and much more. For full information on Log4j we refer to the publicly available documentation, for example the Log4j manual.

Unity offers a simple but quite powerful authorization control of its own access. It is controlled by a designated attribute: sys:AuthorizationRole. The attribute is of enumeration type, and the type can not be changed.

By assigning this attribute to entities, those entities are granted some roles and therefore are authorized to perform certain operations in Unity. The detailed information on what is allowed for each role holder is provided in attribute type description (see Schema Management→Attribute Types). The two most important roles are:

The sys:AuthorizationRole is typically assigned in the root (/) group. However, Unity also supports authorization on the group level: all Unity operations which operate on a particular group (e.g. read attributes in a group, add a member to a group, read group members, create a subgroup, etc) are using the sys:AuthorizationRole attribute which is defined for the user performing the operation in the group in question or in the closest parent where it is defined. Example:

Unity allows its administrators to define and deploy so called registration forms. A registration form can be used in three cases:

The first step is to define a registration form. The form definition consists of three parts:

After creation a registration form can be tested and also filled (use case no 2 above) directly from the Admin Web UI. If the form is public it can be associated with any endpoint with the Web (Vaadin) binding. Then a link to register a new account will appear on the login screen of the endpoint. Finally a form can be associated with a remote authenticator as a "handler" for unknown users who were correctly authenticated remotely.

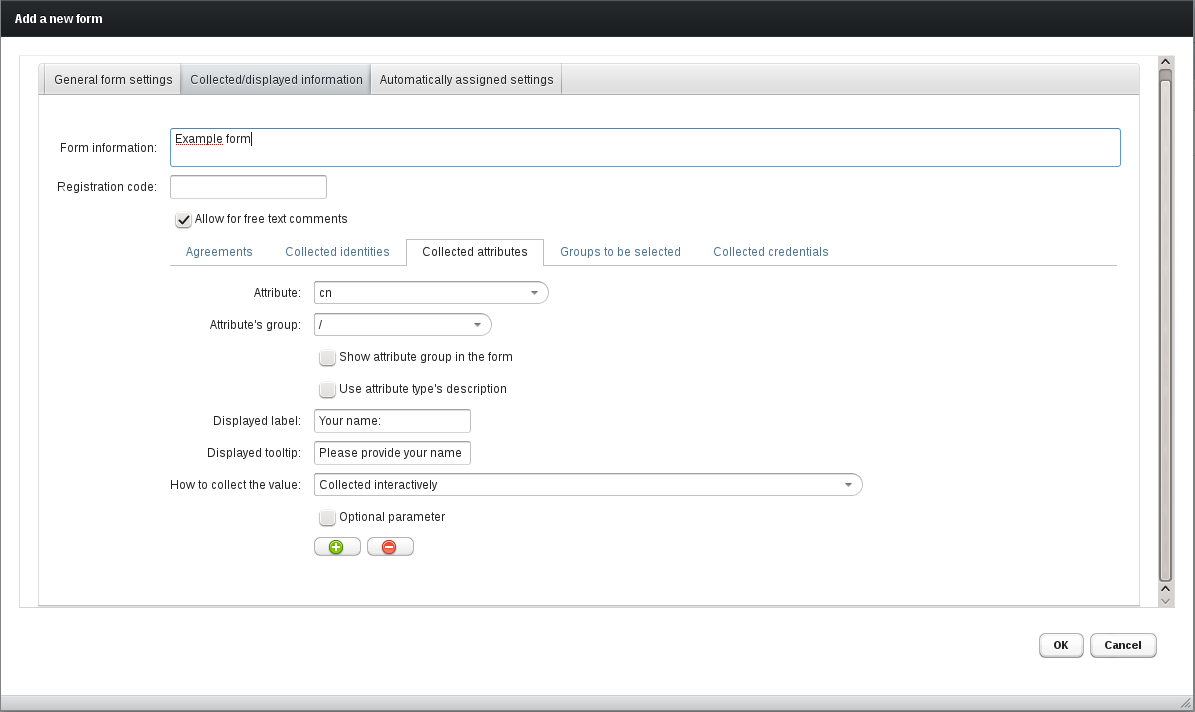

An example of registration form creation:

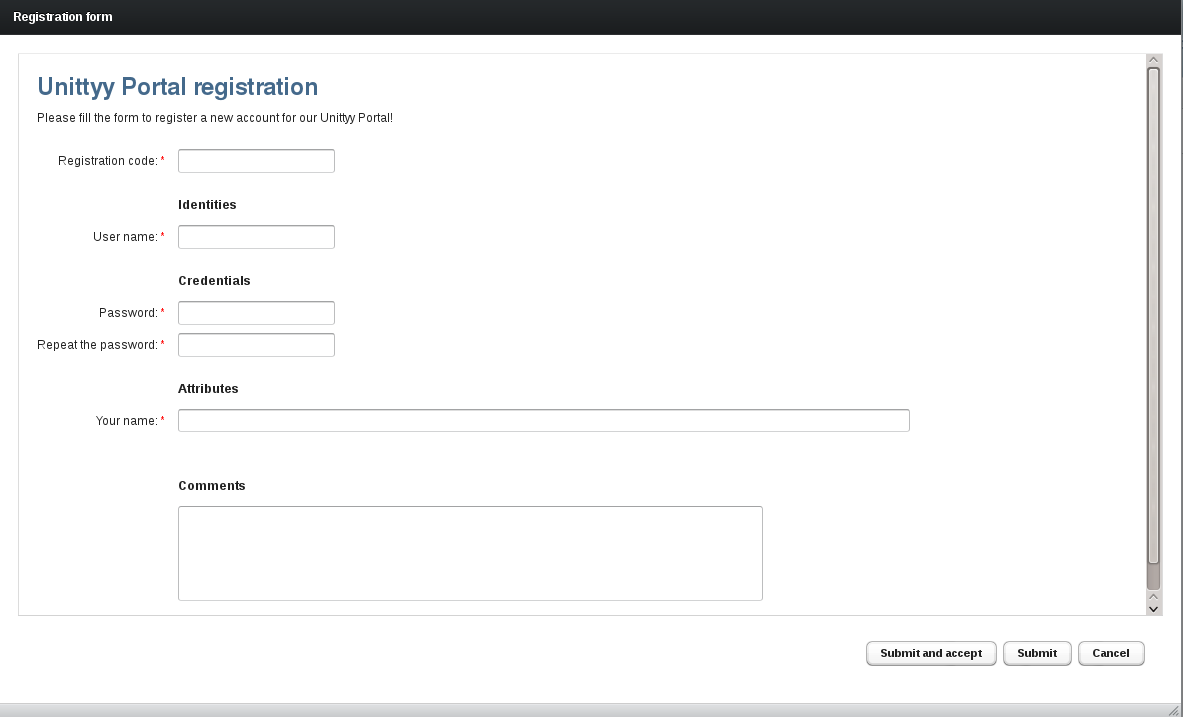

A simple registration form in action:

Note that the above screenshot is showing the form as activated from the Web Admin UI; the form launched other way will not allow for automatic acceptance.

Translation profile is a named, ordered list of conditional rules. The rules are used to modify the remotely obtained data and/or to perform automatic modifications of the Unity’s database. For instance translation profile can change remote attribute size name to width and insert a remotely authenticated user to the local database (to the correct group) if the user is not yet there.

Translation profile is associated with a remote authenticator in its configuration. The definition of the profiles is done with the Admin UI (Server management→Translation profiles).

Translation profile (both conditions and rules) operate on a data structure which is initially filled by the protocol specific component. The structure can contain:

What data is actually returned is dependent on the protocol, upstream server and callout configuration.

The rule condition is given as a MVEL expression language. The documentation can be found here http://mvel.codehaus.org/Language+Guide+for+2.0 and the quick start is here http://mvel.codehaus.org/Getting+Started+for+2.0 The context of the expression language contains three map objects named identities, groups and attributes, indexed with identity, group and attribute names respectively.

For instance the following condition tests whether the authenticated user name is john.

The actions and their arguments are documented in the following table. Where argument is ended with RE a regular expression can be used.

The following example rule maps all (the true condition) remote identities to local representation without any identity change (the original identity is replaced with itself) and assigns it the PasswordOnly credential requirement.

LDAP based authentication allows for outsourcing credential verification to a server talking with the LDAP protocol, as OpenLDAP or Active Directory.

To configure LDAP authentication a server address must be provided as well as some information regarding the LDAP directory schema. The amount of options varies depending on the amount of information that should be retrieved from LDAP.

The typical authenticator’s configuration will look as follows:

Let’s consider an (complex) example of a configuration of the LDAP verificator in file conf/authenticators/ldap.properties:

In this example a single LDAP server is configured (also alternative addresses may be added to take advantage of LDAP high availability deployment if it is set up): localhost:389. The login name which is presented for authentication is converted to an LDAP DN using a template expression. Thanks to it the user needs not to enter the full DN. The two attributes (cn and sn) are going to be retrieved for the user. Finally there are two group definitions, configuring how to extract group membership from LDAP. In this case the LDAP server stores groups as separate tree nodes which contains group members as values of a designated attribute.

In the both cases the groups are searched under the LDAP tree node dc=unity-example,dc=com. In the first case the group objects have the class posixGroup. Members are listed as values of the memberUid attribute. What is more the values are not the full DNs of the members but only their cn attributes. The group’s short name is in its cn attribute. The 2nd group definition is similar but another object class is used (groupOfNames), members are in other attribute (members) and are given with their full DNs.

The complete LDAP options reference follows:

External SAML authentication module allows for authenticating the Unity’s client with the external SAML identity provider as Shibboleth IdP or any other SAML 2 compliant service. Attributes of the authenticated user can be as well obtained and mapped to the local database.

Currently only the two most popular SAML2 SSO bindings are supported: HTTP Post and HTTP Redirect. This means that this authentication can be used only for the web endpoints, to authenticate web browser clients.

The remote SAML callout is configured with a list of trusted SAML identity providers. If more then one trusted provider is defined, then a user can select his/her home provider. As each provider features can be different nearly all settings are specified per provider.

Let’s consider an example with two remote IdPs:

The first part of the configuration provides the general settings: metadata (see below), credential used to sign contents, accepted name formats and the displayed name of the authentication option for the user interface. A configuration of two IdPs follows.

Both IdPs shares the same translation profile (common approach when the IdPs are from a single federation with agreed attributes profile), however the first IdP is configured to use HTTP Redirect binding, while the later the HTTP POST. The certificates are mandatory to verify responses, and are the fundamental element of the whole authentication to ensure proper trust and therefore security.

The first IdP has also two advanced options set: it is defined which attribute is used as a group attribute and a requested name format is fixed (in the latter case the IdP is free to choose).

The complete SAML authenticator configuration reference follows:

The typical authenticator’s configuration will look as follows:

Let’s consider an example of a configuration of the OAuth2 verificator in file conf/authenticators/remoteOAuth.properties:

In the above example two providers are configured: Google and Facebook. You can select among several providers for which we have a predefined type, or use the custom type, however in the latter case you will have to provide a lot of complicated settings of the provider (see the reference table below). What’s more we can’t guarantee that each and every provider will work: OAuth2 is only a framework of a standard. There are providers which implement some earlier drafts also some of the providers follows some non-standard extensions.

In the case of a predefined provider one have to register the Unity service as an application at the providers service. Note that in some cases it may require paid account. During the registration a client identifier and secret are generated, which need to be configured in Unity (clientId and clientSecret). What’s more the provider typically should require to enter the client’s callback URL. For Unity it will be:

Links to client management pages of the well known providers:

As with every remote authenticator a translation profile must be provided to translate the remote user attributes to a local representation.

Finally you can override some of the default settings for the provider. The most useful is the scopes setting: it controls how much of the information is requested to be fetched from the provider (of course the user must agree to provide this level of access). Each provider uses different names for scopes so please check up providers documentation to learn the available values.

The complete OAuth options reference follows. First a general table shows what are the options pertaining to the whole authenticator, then a separate table shows the options which can be set for each OAuth2 provider.

Web Admin UI is the first place to visit after server installation and startup as it offers a administrator oriented management interface. By default it is accessible under the link: https://localhost:2443/admin/admin

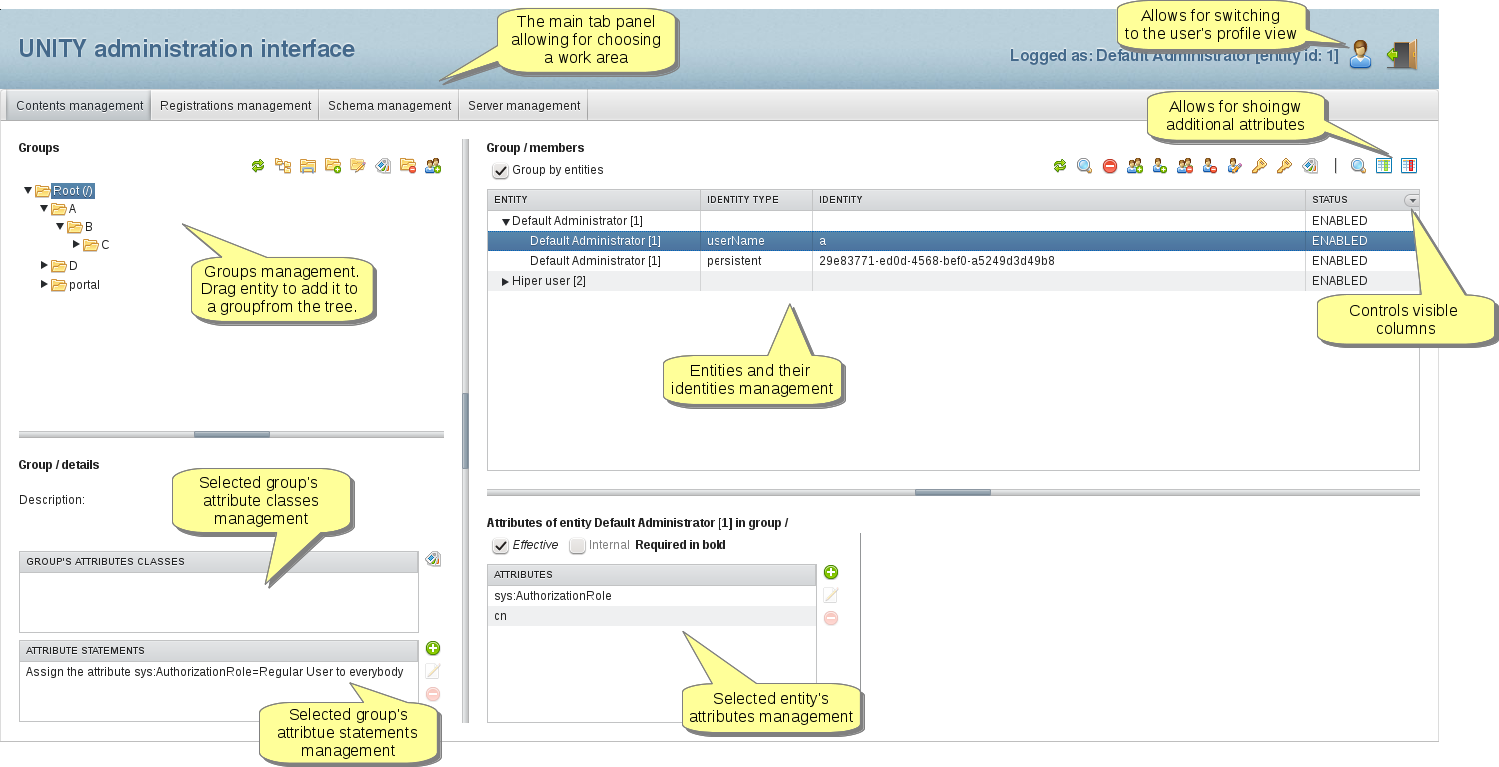

The features of the Web Admin interface are covered in the Contents management section.

The endpoint offers only the standard options of the Web binding.

Web User Home UI provides a simple profile management interface for the ordinary Unity members. It is possible to change preferences, update credentials and check information stored in the Unity database about the user.

By default it is accessible under the link: https://localhost:2443/home/home

Note that the Web Admin endpoint incorporates all the features of the of the Home endpoint (accessible after switching the view with the profile button).

The endpoint offers only the standard options of the Web binding.

This endpoint exposes the SAML 2 authentication interface, implementing the SSO profile with the support for the SAML HTTP-POST and HTTP-Redirect bindings.

The endpoint first authenticates the redirected client, then presents a confirmation screen where a user can review and alter a returned information and, after acceptance, redirects the user to the SAML Service Provider with a SAML response.

The metadata related features and configuration is the same as in the case of remote SAML authenticator (SAML Metadata support) with the exception that the metadata is published under the endpoint’s address with the constant /metadata suffix.

The options of the endpoint (besides the standard options for all Web endpoints) are:

This endpoint exposes the SAML 2 authentication interface, exposing the functionality of the Attribute Query and Authentication SAML protocols over the SAML SOAP binding.

The SAML options and metadata notes are the same as in the case of the Web SAML SSO endpoint.

This endpoint is a slightly enhanced Web SAML SSO endpoint, with the UNICORE 7 Grid middleware support. It is useful for UNICORE portal SAML authentication, so if you don’t integrate UNICORE portal with Unity don’t use this endpoint.

The endpoint is configured in the same way as the Web SAML SSO endpoint, the only functional difference is that it allow to generate and return UNICORE 7 trust delegations made for the relaying party.

Only the users with the X.500 identity (among others identities) may use this endpoint. However neither authentication with certificate nor possession of a X.509 certificate is required.

This endpoint is a slightly enhanced version of Web Service SAML SOAP endpoint, with the UNICORE 7 Grid middleware support. It is useful for UNICORE standalone client (e.g. UCC) SAML authentication, if you don’t integrate UNICORE with Unity this endpoint is useless.

The endpoint is configured in the same way as the Web Service SAML SOAP endpoint, the only functional difference is that it generates and return UNICORE 7 trust delegations made for the client.

Only the users with the X.500 identity (among others identities) may use this endpoint. However neither authentication with certificate nor possession of a X.509 certificate is required.
